ASME / Custom Flanges

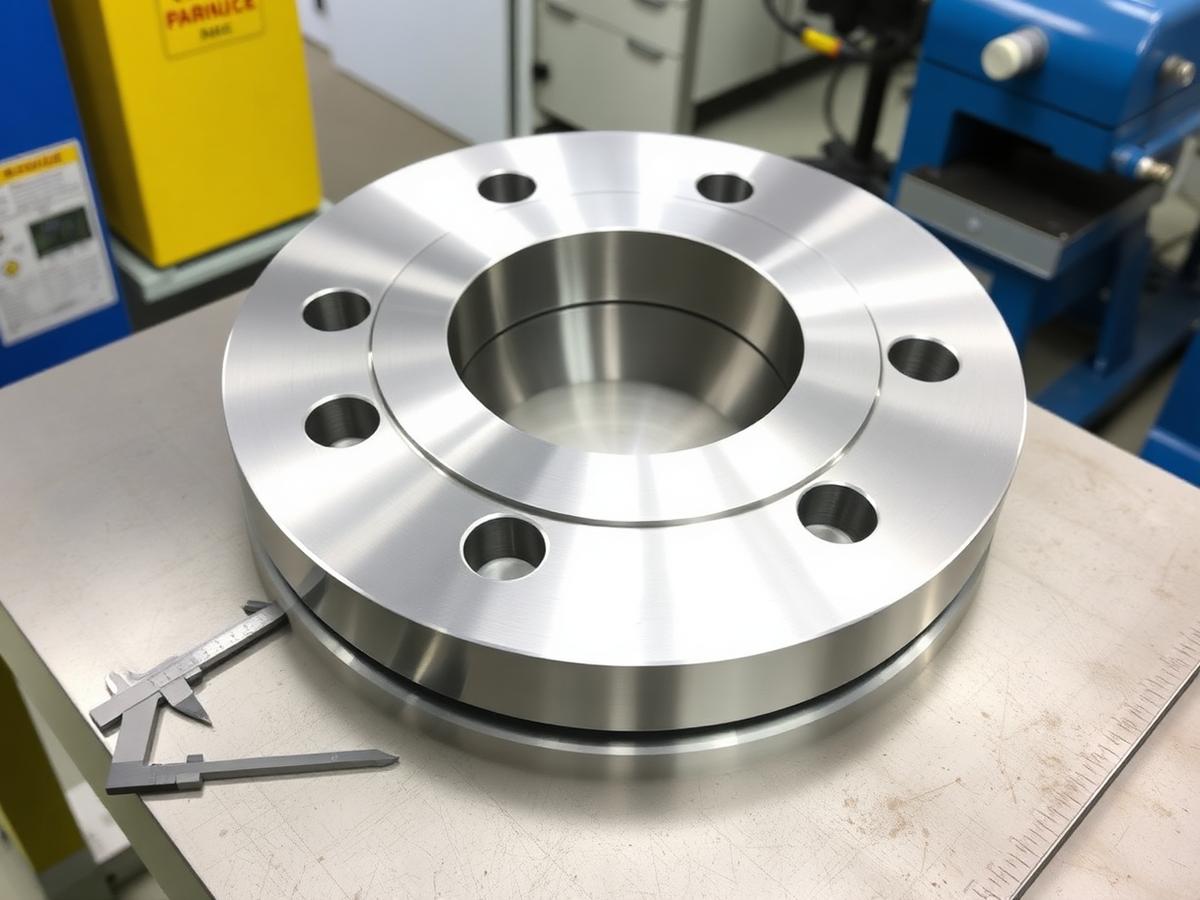

Weld-neck, slip-on, blind and custom flanges in Class 150 through 2500 in nickel and specialty alloys.
Flange Capabilities
§01 — OverviewRAS Alloy manufactures standard and special flanges in heat and corrosion-resistant alloys. We supply to ASME B16.5/B16.47, API and customer drawings with full material certification and pressure-test documentation.
Key Capabilities
- Standard
- ASME B16.5 / B16.47
- Pressure class
- 150 – 2500
- Sizes
- NPS ½" – 48"
- Facing
- RF, RTJ, FF, tongue-and-groove
- Heat treatment
- Solution / anneal / age
Why RAS Alloy
§02 — Quality + TraceabilitySizes & Tolerances
§03 — Specifications| Type | Range | Note |
|---|---|---|
| Weld-neck | NPS ½" – 24" | Class 150 – 1500 |
| Slip-on | NPS ½" – 48" | Class 150 – 600 |
| Blind | NPS ½" – 48" | Class 150 – 2500 |
Tolerances
- OD / ID
- ASME B16.5 / B16.47
- Bolt circle
- ±0.5 mm typical
- Facing finish
- Ra 3.2 – 6.3 standard
Typical End Uses
§04 — ApplicationsFrequently Asked Questions
Flange FAQWhat flange types and pressure classes do you offer in nickel alloys?
Weld-neck, slip-on, blind and custom flanges in NPS ½"–48", Class 150–2500 to ASME B16.5 / B16.47, with RF, RTJ, FF or tongue-and-groove facing and CNC-machined bolt holes held to ±0.5 mm bolt-circle tolerance.
Which grades do you keep for sour-service flanges?
Inconel 625, Inconel 718, Hastelloy C-276, C-22, Monel 400 and Monel K-500 to ASTM B564, with API 6A and NACE MR0175 qualification for subsea manifolds, wellhead piping and pressure vessel nozzles.
How is flange material certified?
Each flange ships with a mill test certificate traceable to the heat plus a PMI report; hydrostatic pressure-test documents and third-party inspection can be arranged before shipment.
